Resistive Heating Tungsten Wire Filament 99.95% Min

Brand Name : FGD

Model Number : fdg t-003

Certification : SGS

Place of Origin : China

MOQ : 1KG

Price : USD80-USD350/KG

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 8000kg per month

Delivery Time : 5-7 days

Packaging Details : WOODEN CASE

Product name : Tungsten Wire

Purity : 99.95% min

Wire Gauge : 0.6-1.2mm diameter

Surface : Polished

Grade : Top Wal 1

Application : filament, electrode, semiconductor heater components

Density : 19.3g/cm3

melting point : 3410℃

shape : wire filament

chemical composition : pure tungsten wire

surface finish : hot working surface state

Contact Now

Tungsten Resistive Heating Wire

Specification

Diameter, mm	Diameter telorance, %	Weight ( 200mm ), mg	Length min, m
0.012−0.06	−	>0.44−10.91	700
0.06−0.1	−	>10.91−30.30	400
0.1−0.15	−	>30.30−68.18	250
0.15−0.2	−	>68.18−121.20	150
0.2−0.35	−	>121.20−371.19	100
0.35−0.7	±1.5−±2.5	−	same as 150g
0.7−1.8	±1.0−±2.0	−	same as 200g

Chemical Composition

Grade	W content, min, %	Total impurity elements, max, %	Each element, max, %
W1	99.95	0.05	0.01
W2	99.92	0.08	0.01

Feature

• High temperature performance

- According to the specific applications,High temperature property requirements are categorized.

•Diameter consistency

- Weight deviation of two consecutive 200mm-wire pieces is less than 0.5% of nominal value.

•Straightness

- Regular tungsten wire: in accordance with customer’s requirements.

Straightness tungsten wire: For the tungsten wire thinner than 100μm, vertical height of 500mm freely suspended wire should not be less than 450mm;

For the tungsten wire at or thicker than 100μm, the maximum arc height between pints with distance of 100mm is 10mm;

•Surface conditions

- Smooth surface, free of splits, burrs, cracks, dents, dots, grease contamination.

Product Tags:

Tungsten Resistive Heating Wire

Resistive Heating Tungsten Wire filament

99.95% Min Tungsten Wire filament

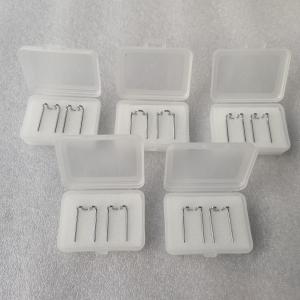

Resistive Heating Tungsten Wire Filament 99.95% Min Images
